PHYSICS
WAEC 2015

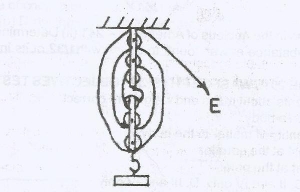

The diagram below illustrates a block ans tackle pulley system in which an effort E supports a load of 100.0N. If the efficiency of the machine is 75%, calculate the value of E
- A. 22.2N
- B. 38.0N
- C. 67.0N
- D. 75.0N
Correct Answer: A. 22.2N
Explanation
Given; VR = 6, e = 75%, MA = ?
e = \(\frac{\text{MA}}{\text{VR}} \times \frac{100}{1}\)
MA =\(\frac{75 \times 6}{10}\)
MA = \(\frac{9}{2}\)
MA = \(\frac{L}{E} = \frac{100}{E}\)
\(\frac{9}{2} = \frac{100}{E}\)
9E = 100
E = \(\frac{200}{9}\)
= 22.2N
