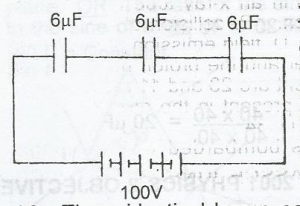

What is the effective capacitance in the circuit?
PHYSICS
WAEC 2001
What is the effective capacitance in the circuit?
- A. 2\(\mu F\)
- B. 6\(\mu F\)
- C. 18\(\mu F\)
- D. 216\(\mu F\)
Correct Answer: A. 2\(\mu F\)
Explanation
\(\frac{1}{c} = \frac{1}{6} + \frac{1}{6} + \frac{1}{6}\)
= \(\frac{1 + 1 + 1}{6} = \frac{3}{6} = \frac{1}{2}\)
= 2\(\mu F\)
