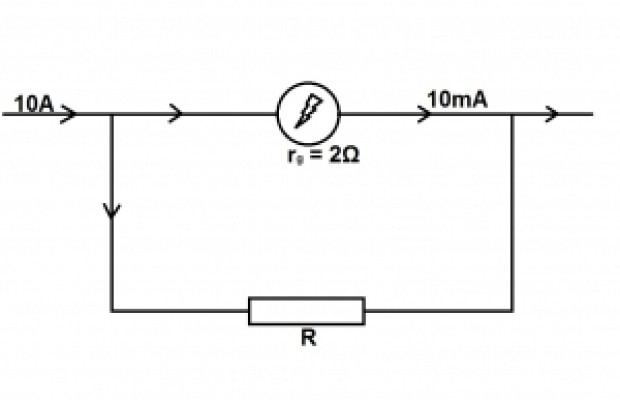

The diagram below illustrates the conversion of a galvanometer of resistance 29 to an ammeter.
PHYSICS
WAEC 1996
The diagram below illustrates the conversion of a galvanometer of resistance 29 to an ammeter. The galvanometer gives a full-scale deflection for a current of 10mA. Calculate the value of R.
- A. 2.0 x 103 Ω
- B. 2.0 x 102 Ω
- C. 2.0 x 10-1 Ω
- D. 2.0 x 10-3 Ω
Correct Answer: D. 2.0 x 10-3 Ω
