The diagram represents a block-and-tackle pulley system on which an effort of 50N is just...
PHYSICS
WAEC 1991

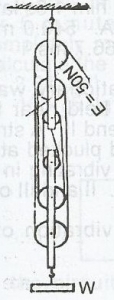

The diagram represents a block-and-tackle pulley system on which an effort of 50N is just able to lift a load of weight W. If the efficiency of the machine is 40%. find the value of W
- A. 300N
- B. 200N
- C. 140N
- D. 120N
Correct Answer: D. 120N
Explanation
Eff = \(\frac{MA}{VR}\) x 100%
40 = \(\frac{MA}{60}\)
MA = 240
\(\frac{L}{E} = \frac{240}{100}\)
W = L = \(\frac{240}{100}\) x 50
= 120N
