In the circuit diagram below, calculate the current in the 12Ω resistor if the cell...
PHYSICS
JAMB 1994

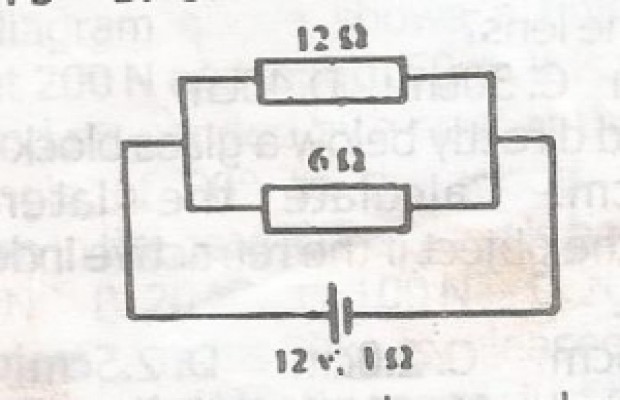

In the circuit diagram below, calculate the current in the 12Ω resistor if the cell has an emf of 12V and an internal resistance of 1?
- A. 0.8A
- B. 1.0A
- C. 1.6A
- D. 2.4A
Correct Answer: D. 2.4A
Explanation
\(E = I(R + r)\)
\(I = \frac{E}{R + r}\)
\(\frac{1}{R} = \frac{1}{12} + \frac{1}{6} = \frac{1}{4}\)
\(R = 4\Omega\)
\(I = \frac{12}{1 + 4} = \frac{12}{5}\)
= 2.4A
