PHYSICS
JAMB 1992

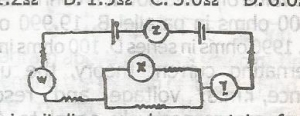

The circuit diagram below contains four ammeters W, X, Y and Z, Which of the following statements about the ammeter readings is correct
- A. The reading of W is equal to that of Y and twice that of X
- B. The reading of Y is greater than that of Z
- C. The readings of W and Y are equal and each is greater than that of X
- D. The reading of Z is equal to the sum of the readings of Y and W
Correct Answer: C. The readings of W and Y are equal and each is greater than that of X
